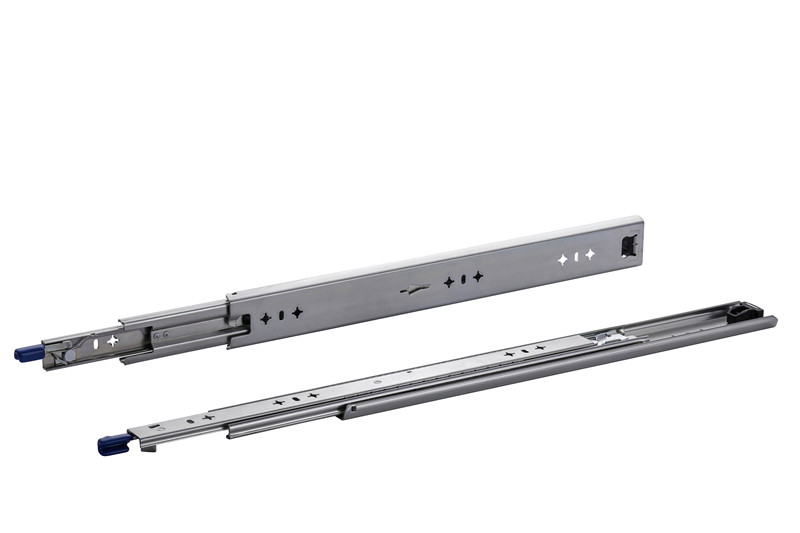

Foxslide 115kg Steel Locking Full Extension Medium Duty Ball Bearing Drawer Slides
Foxslide 115kg Steel Locking Full Extension Medium Duty Ball Bearing Drawer Slides
Specially designed to support loads of up to 250 pounds (115kg), top quality steel drawer slides offer smooth and quiet operation in various use. Disconnect lever make drawer slide be easily installed. Locking lever guarantee security of drawers in mobile use.
Medium Duty Drawer Slide Featured in:
Lock in and lock out
Full extension
Disconnected for easy installation
Hold-in detent prevent drawers from rolling open
Side-mounted
Steel balls guarantee smooth and quiet operation
RoHs compliant
Even lengths 8"~60"[ 1'=25mm]
Surface is blue and zinc plated
Standard & Approval: ISO9001 & ANSI/BIFMA, FIRA, SGS, DIN.
Same dimension to accuride drawer slide
Foxslide meditum duty telescopic drawer slides can be customized in:
Slide length
Slide travel: 3/4 extension, full extension, overtravel 1"~2", two way travel.
slide load and special holes
Slide mounting: side mount, bottom mount, middle mount...
One way/two-way extension. forward/backward extensions
Anti-dust design, locking function
End stops and dampers
Operating temperature range: -40℃ to 300℃
| Item No. | Foxslide 115kg Steel Locking Full Extension Medium Duty Ball Bearing Drawer Slides |
| Material | High-grade steel |
| Width | 53mm |
| Length | 250mm to 1500mm |
| Travel | Full extension |
| Plating/Finish | Zinc plating |
| Loading capacity | 115kg/pair |
| Function | with or without lock, accordingly to customer design |
| Installation | Screw fixing |
| MOQ. | NO MOQ |
| Port | Guangzhou, Shenzhen |
| Packing | Carton/wood box |
Q1: Are you manufacturer or trading company?
A1: We are manufacturer& trading company combo of heavy duty drawer slides. We have our own factories in Foshan and Suzhou for drawer slide rail, and CNC center for linear motion hardware products.
Q2: What are the payment terms accepted?
A2: Usually T/T is appreciated. L/C for old customers only.
T/T: 30% deposit before production, balance before shipment.
Other payment terms can be applied too.
Q3: How do I know if my order of heavy duty drawer slide or medium duty drawer slides has been received?
A3: When we receive your order on top quality drawer slide by mail or fax, we will sign back the PI to you by mail or fax. We'll also email you to confirm.
Q4: When will my order be delivered?
A4: You’ll see the estimated delivery lead time on the PI. For regular items, usually deliver within 15 to 30 days. For special items, normally 35-40 days. We will update the process daily.
Q5.: How can I check the latest prices on medium duty drawer slide?
A5: We’ve always got special offers for you. With so many great deals on drawer slide runners and linear motion parts, you could find that lots of products drawer slides, telescopic slide rails or guide rails are cheaper than exception!
Q6: How can I get more details about full extension drawer slide on this website?
A6: For more information on any products featured on this website, please contact us by email jillyvon@foxslide.com, or call at+86-13436611722.
Q7: Can I have a sample of ball bearing drawer slides, linear guides or ball screws to check?
A7: Sure, we can send you the samples for free when you pay the freight. Sampling lead usually takes 1 week and special sample takes 2 to 3 weeks
